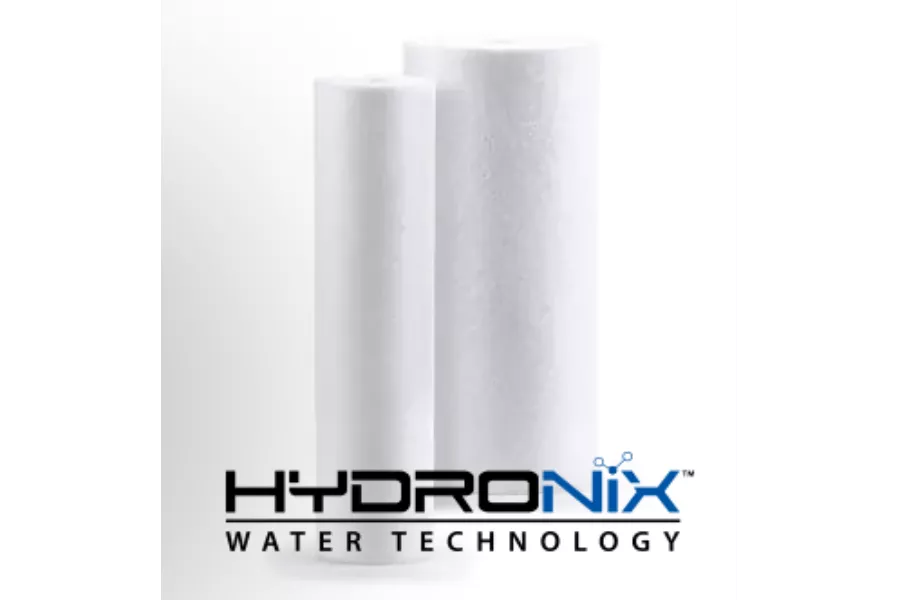

Sediment Depth Cartridges 4.5"diameter
Merchandise number：SDC-45series
Description：
Maximum pressure drop: 69 °F (20°C) 46.4 psi (3.2 kg/cm2)
Recommended replaceable pressure drop: 21.75 psi (1.5 kg/cm2)
Temperature range: 40 °F to 145 °F (4.4 °C to 62.8 °C)
Maximum flow: 2-8 gpm (Depending on micron rating)
Electroplating, etching, and image developing processes in PCB Industry
Filtration for electroplating industry
Pre- filter for DI and RO water fi ltration systems
Pre-fi ltration for low viscosity chemicals
Pre-fi ltration for manufacturing and water recycling
Graded density for higher dirt holding capacity
Manufactured from 100% pure Polypropylene
Made with FDA CFR 21 approved material
NSF Standard 42, 61, & 372 certified
Our 4.5” diameter SDC filters have true multi-stage depth filtration integrated into their design. Utilizing our technology to create four separate layers of micron filtration, SDC cartridges allow the outer layer to trap the larger sized particles, resulting in a much lower pressure drop compared to conventional filters. Trapping various sized particles layer-by-layer, our SDC Series filters provide a much higher dirt holding capacity than standard spun polypropylene and string wound cartridges.
* For list of products NSF Certified visit nsf.org
| 4.5” DIAMETER SPECIFICATIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Micron Rating | Case Quantity | Box Dimension (Inches) | Weight (lbs) | Weight (kgs) | |||||
| 10” | SDC-45-1001 | 4.5” x 9 7⁄8” | 1 | 12 | 14” x 10” x 21” | 12 | 5.44 | ||||
| SDC-45-1005 | 4.5” x 9 7⁄8” | 5 | 12 | 14” x 10” x 21” | 12 | 5.44 | |||||
| SDC-45-1010 | 4.5” x 9 7⁄8” | 10 | 12 | 14” x 10” x 21” | 12 | 5.44 | |||||
| SDC-45-1020 | 4.5” x 9 7⁄8” | 20 | 12 | 14” x 10” x 21” | 12 | 5.44 | |||||
| SDC-45-1050 | 4.5” x 9 7⁄8” | 50 | 12 | 14” x 10” x 21” | 12 | 5.44 | |||||
| 20” | SDC-45-2001 | 4.5” x 20” | 1 | 6 | 14” x 10” x 21” | 12 | 5.44 | ||||
| SDC-45-2005 | 4.5” x 20” | 5 | 6 | 14” x 10” x 21” | 12 | 5.44 | |||||
| SDC-45-2010 | 4.5” x 20” | 10 | 6 | 14” x 10” x 21” | 12 | 5.44 | |||||
| SDC-45-2020 | 4.5” x 20” | 20 | 6 | 14” x 10” x 21” | 12 | 5.44 | |||||
| SDC-45-2050 | 4.5” x 20” | 50 | 6 | 14” x 10” x 21” | 12 | 5.44 | |||||
